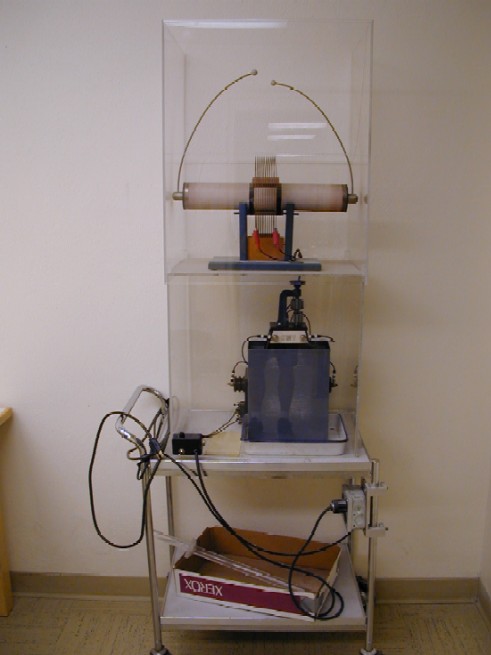

Large Tesla Coil.
P.I.R.A. #: 5N20.30
Illustrates: PURPOSE: To demonstrate a tesla coil, including how magnetic induction and a resonant RLC circuit is used in the production of high-voltage high-frequency sparks.
Description: Our Tesla coil uses a 5000 volt transformer to charge a large oil capacitor. When the potential across the capacitor reaches the breakdown potential of the spark gap, breakdown across the gap occurs. The spark gap then becomes a conducting part of the RLC circuit, which resonates at a frequency of about 200 kilohertz. The large coil in the resonant circuit is the primary of the final transformer and the very fine coil is the secondary, producing about 200,000 volts at 200 kilohertz.
Size: 3' W x 6' H
Notes: Works better than the solar spectrum demonstration.
Hazard: Electric field can damage wrist watch and computers. Keep electronics and computers at a safe distance (>10') away.
Condition: Good.
