Fluid Mechanics
2B - Statics of Fluids
 |
2B 20.40 - Pascal's Tubes:
Demonstrates: Properties of fluids. Description: Fluids rise to the same level independant of the vessel. |
 |

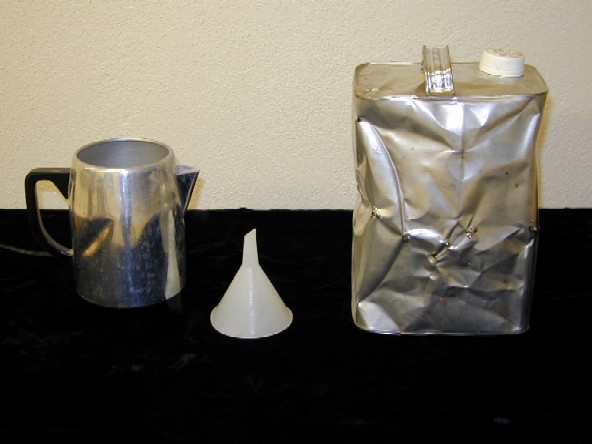

2B 30.10 - Crush the Can:
Demonstrates: Atmospheric pressure. Description: Fill a can with boiling water and cap tightly then watch as the can collapses as the water cools. |
 |

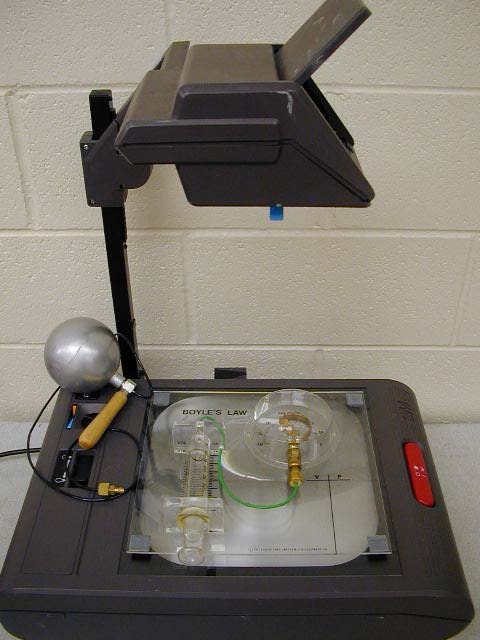

2B 30.50 - Boyle's Law Apparatus:
Demonstrates: Change in pressure equals a change in value. Description: A calibrated glass syringe is attatched to an absolute pressure gauge. Also with a copper sphere. |
 |

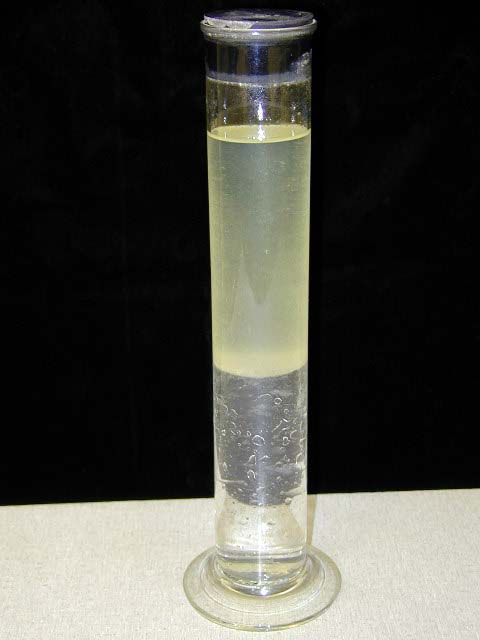

2B 40.40 - Density Tube:
Demonstrates: Difference in densities. Description: Fluids of two differing densities in the same tube are mixed then separate on their own. Salad dressing anyone? |
 |

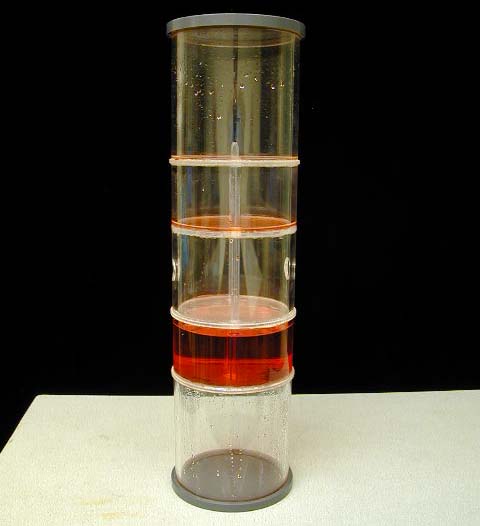

2B 60.10 - Hero's Fountain:
Demonstrates: Fluid Dynamics. Description: Air forces water above its source. |
