![](../html_demo_pages/4a1010.jpg) |

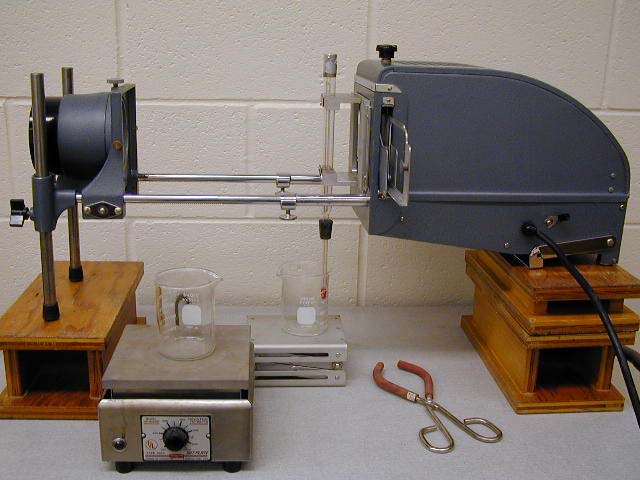

4A 10.10 - Thermometry:
Demonstrates: Temperature measurement.
Description: Projection thermometer shows temperature variation between hot and cold water.
|
![](../html_demo_pages/4a2010.jpg) |

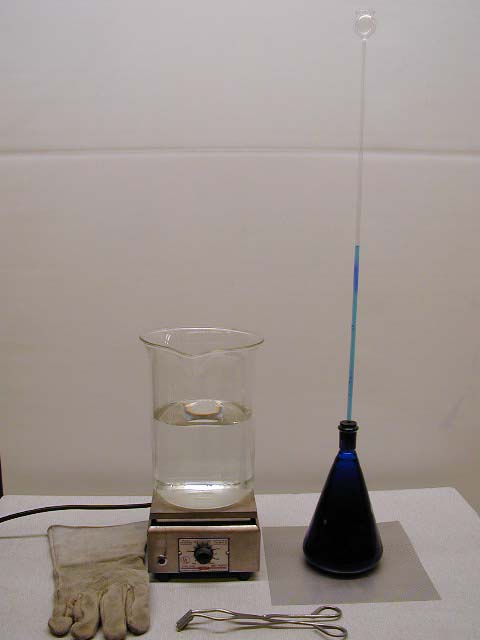

4A 20.10 - Water Thermometer:
Demonstrates: Expansion due to rising temperature.
Description: An Erlenmeyer flask and extension tube filled with water that rises when heated.
|
![](../html_demo_pages/4a3010.jpg) |

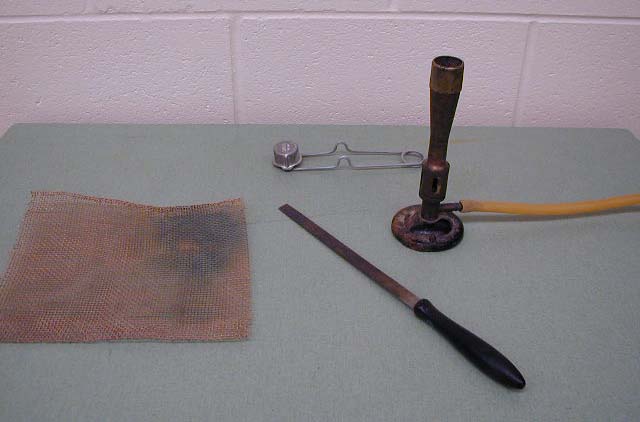

4A 30.10 - Bi-metal Strip:
Demonstrates: Expansion due to heat.
Description: A bimetal strip is heated and curls because one side expands more than the other. There is also a large (41") bimetal strip available for this demo but it gets heavy.
|
![](../html_demo_pages/4a3020.jpg) |

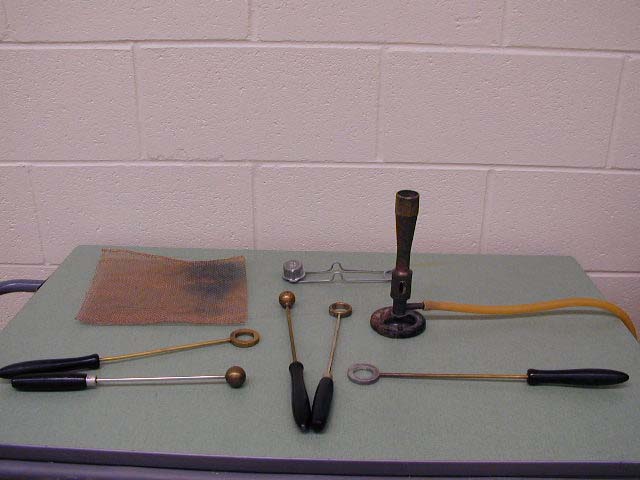

4A 30.20 - Balls and Ring:
Demonstrates: Exansion due to heat.
Description: Ball & Rings. Heating the ring allows the ball to pass through it.
|
|
|
