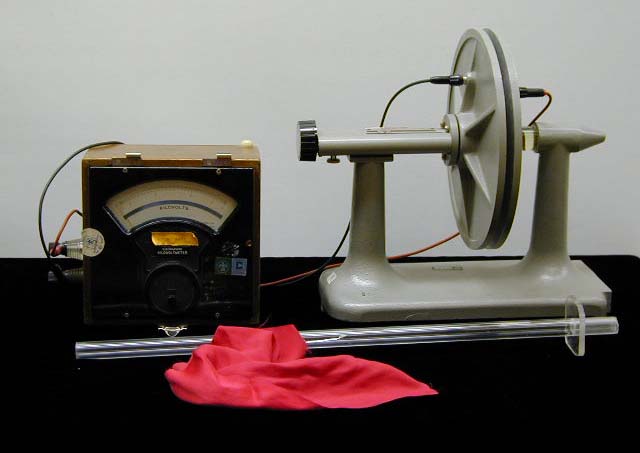

5C 10.20 - Parallel Plate Capacitor:
Demonstrates: Capacitance. Description: A charge can be put onto the plates by using the electroplaus. The charge is then registered by the meter. Changing the distance between the plates changes the charge. |
 |

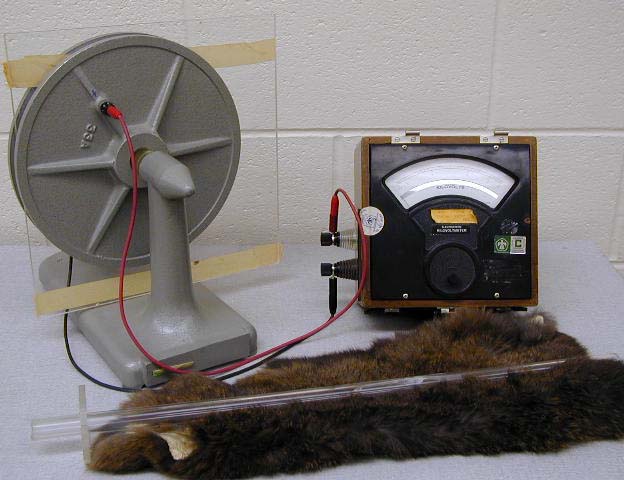

5C 20.10 - Capacitor with Dielectric Sheet:
Demonstrates: Insulators. Description: A non-conducting material is placed between the two plates to decrease potential. |
 |

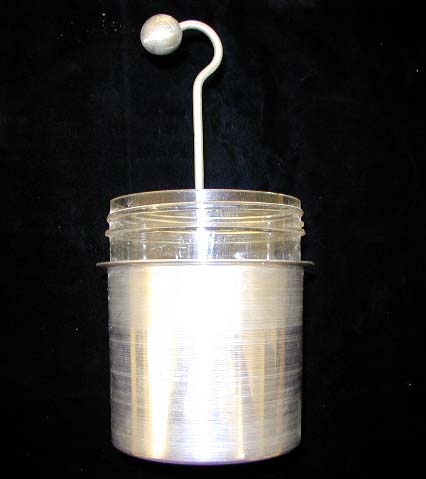

5C 20.30 - Leyden Jar:
Demonstrates: Principles of capacitors. Description: Stores a charge from an electrostatic generator. |
 |

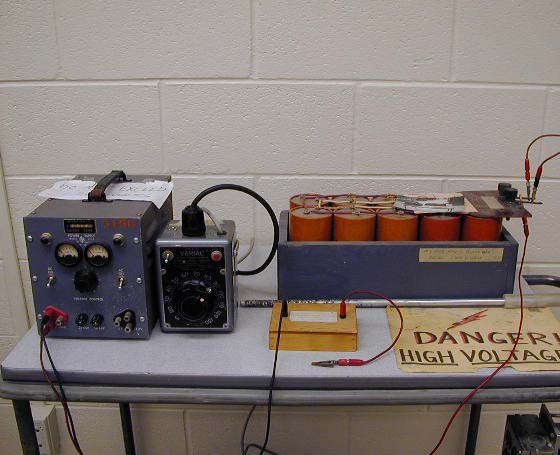

5C 30.20 - Big Bang:
Demonstrates: Stored energy. Description: Energy is stored in a bank of capacitors. When suddenly discharged a big bang occurs. |
